Ⅰ. SPECIFICATIONS
|
Product Name |
Model No. |
Rated Power |
Rated Voltage |
Charging Time |
|
Pet Clipper |
YP-7705 |
5W |
Battery 3.7V Motor 3.0V |
Approx. 2 hours |
Ⅱ. ILLUSTRATION
A. Power Button
B. Standard Clipper Head
C. Standard Guide Comb (3mm/6mm/9mm/12mm)
D. Narrow Guide Comb (2mm)
E. Detail Guide Comb (2mm)
F. Detail Clipper Head
G. Wide Localized Clipper Head
H. Pet Nail Grinder Head
I. Cleaning Brush
Ⅲ. OPERATION
- Installing and Removing Clipper Heads
- Align the clipper head (A) with the slot on the device (B), then press it down firmly until you hear a "click," indicating that it is securely in place.
- To remove the clipper head, first ensure the device is turned off. Then, push the clipper head backward toward the rear of the device and detach it.
- The installation and removal methods for other clipper heads are the same.
- Installing and Removing Blade Heads
Only the standard clipper head allows blade head removal.
- To disassemble, turn off the device, press the blade teeth with your thumb, and push forward in the direction of the arrow. Hold the blade head carefully to prevent damage from dropping.
- To install, align the blade head connection point (A) with the clipper head slot (B), then press it down until it clicks into place.
Note: Handle with care when installing or removing the blade head. Damaged blades may cause snagging, poor operation, or malfunction. Contact customer service if issues arise.

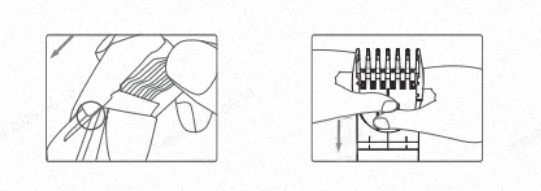

- Installing and Removing Guide Combs
- Standard Guide Comb (3mm/6mm/9mm/12mm)
- With the device powered off, align the positioning comb head with the blade head, then align the tail slot of the blade. Press the tail section until a 'click' sound is heard, indicating that the installation is complete.
- With the device powered off, place your thumb on the tail of the positioning comb and gently push upward to detach it. Do not pull on the comb teeth forcefully to prevent damage.
- Detail Guide Comb (2mm)
- Ensure the device is powered off. Align the positioning comb head with the cutter head, then align the side slot of the cutter head. Slide the comb head downwards until it securely clicks into place, indicating proper installation.
- To disassemble, gently slide the positioning comb upwards to detach it.
- Narrow Guide Comb (2mm)
- Ensure the device is powered off. Align the guide comb with the side slot of the cutter head, then gently press down until a distinct 'click' sound is heard, confirming proper installation.
- To disassemble, gently release the side latch of the guide comb to remove it. Do not pull the comb teeth forcefully to avoid damage.
- Trimming Operation
- Before Use
It is recommended to wash and dry the pet's fur, followed by thorough combing. In the case of tangles, trim them first to prevent dirt or debris from affecting the lifespan of the cutter head.
- Charging
Before use, ensure the device is fully charged. Use the supplied charging cable to connect the power interface to the device for charging. If using a non-standard 5V charger, ensure that the current is 1A to ensure proper charging.
- Trimming with the Guide Comb
Using guide combs of varying tooth lengths allows you to trim the fur to the desired length, minimizing the risk of accidental over-trimming and providing better control over the overall thickness of the fur.
- Select the appropriate guide comb length based on the desired grooming style.

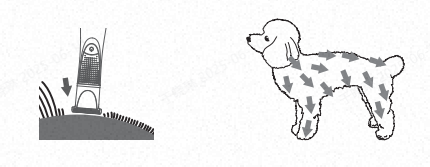

- Hold the device securely, ensuring the flat side of the comb is in close contact with the trimming area. Move the device slowly and steadily against the direction of hair growth to trim the fur to the desired length.
- Trimming Without the Guide Comb
Trimming without the guide comb requires professional grooming skills. When trimming, move the back of the clipper along the direction of hair growth, trimming the fur to the desired length. (When trimming without the guide comb, the remaining hair length is approximately 1mm, resulting in a nearly bald effect.)
Note:
- Trimming against the direction of hair growth may lead to excessive trimming or skin irritation.
- Ensure the fur is dry before trimming, as wet hair increases the difficulty of trimming and reduces the sharpness of the blades.
- Avoid applying excessive pressure on the clipper head against the skin to prevent injury.
- Trimming Pet's Nails
Gently hold the pet's paw and bring the nail into contact with the rotating nail grinder to begin filing. For the first session, it is recommended to file only the tip of the nail. The pet may need several grooming sessions to adjust to the nail filing process.
- Trimming Tips for Different Areas
- The standard clipper head is suitable for trimming the overall coat and larger areas, such as the body and legs.
- The wide-sized clipper head is ideal for trimming smaller areas, such as the fur around the lips, paws, and face, and for fine-tuning the rough edges left by other clipper heads.
- The fine detail clipper head is perfect for precise trimming of smaller, harder-to-reach areas, such as the ears and around the eyes.
Ⅳ. CLEANING AND MAINTENANCE

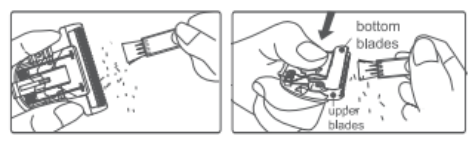

- Maintenance and Cleaning of the Cutter Head
- Standard Clipper Head
After detaching the blade, press down on the blade holder in the direction of the arrow and use a cleaning brush to remove hair from the blade's gaps. Do not disassemble the spring on the clipper head, as this could prevent the blade head from returning to its original position and affect its proper function.
- Other Clipper Heads
No need to detach the blades. Simply use a cleaning brush to remove hair from the gaps in the blades.
Note: After each use, be sure to clean the surface of the cutter head and remove any hair debris from the gaps in the blades to maintain their sharpness. If cleaning the cutter head with water, make sure to thoroughly dry it to prevent any issues with subsequent use.

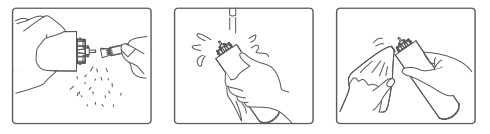

- Cleaning and Maintenance of the Device Body
Ensure the device is powered off. Use a cleaning brush to remove hair and debris from the body and the cutter head mounting slot. The body can be washed with water, but ensure that water does not enter the charging port. After cleaning, thoroughly dry the body with a clean cloth.
Note: Do not use gasoline, alcohol, acetone, or other corrosive chemicals to clean the device body. Do not attempt to disassemble or repair the product on your own.
Ⅴ. CAUTION
- Regular cleaning and maintenance ensure the device operates efficiently and extends its lifespan.
- Do not expose the device to high temperatures or direct sunlight.
- Do not share this product with pets or others.
- Do not modify, disassemble, or repair the product on your own.
- If the device’s blades or cutter heads become worn, please contact customer service for replacement.
- Do not place heavy objects on the charging cable or obstruct it with other items, as this may cause damage or deformation of the cable.
- During use and charging, the device may experience slight heating, which is normal. Please use it with confidence.
- Before use, check the cutter head for any damage or deformation.
- This product can only be charged using the supplied charging cable. If the charging cable is damaged, please contact customer service promptly.
- Do not apply excessive pressure on the cutter head against the skin.
- Keep this product out of reach of infants and children.
- This product is not suitable for individuals with physical, sensory, or mental impairments, or those lacking experience and common sense.
- If you notice any abnormalities or malfunctions, stop using the product immediately and contact customer service for assistance.
- The charger should be used in an environment with a temperature between 5°C and 40°C.
- Do not use non-rechargeable batteries. Before charging, ensure the battery has an appropriate charge level, and use a compatible adapter with an output of 5V 1A (actual output power less than 15W) for charging.
- This product is only intended for the purposes described in the user manual.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised not to play with the appliance.
