SG/MY-ELECTRIC BLENDER JBBA003 USER MANUAL

SPECIFICATIONS

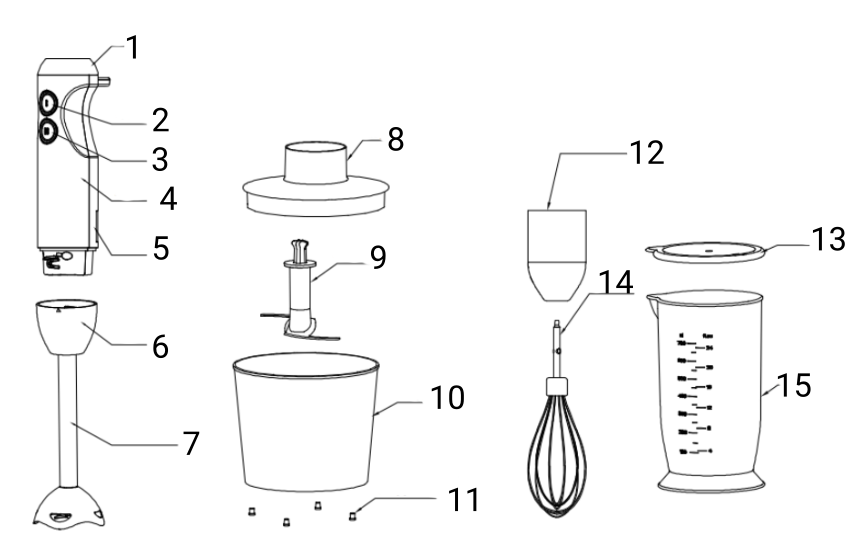

ILLUSTRATION

1. Header
2. Upper press key
3. Lower press key
4. Front shell
5. Back shell
6. Blend head
7. Blend rod
8. Chopper lid
9. Chopping blade
10. Chopper
11. Chopper rubber foot
12. Whisk head
13. Cup lid
14. Whisk
15. Beaker

OPERATION

• How to use the blending blade

This accessory is special suitable for processing dip, sauce, soup, mayonnaise, baby or aged people food and mixed drinks, milk shake, etc.

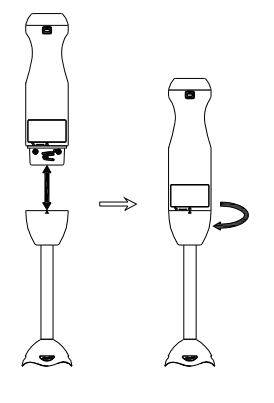

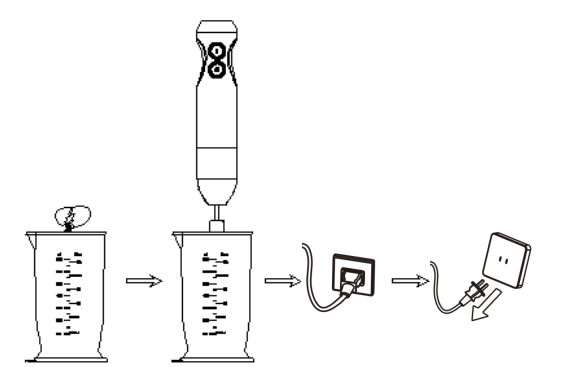

1. Installing the blending blade turn-lock clasp on the main unit

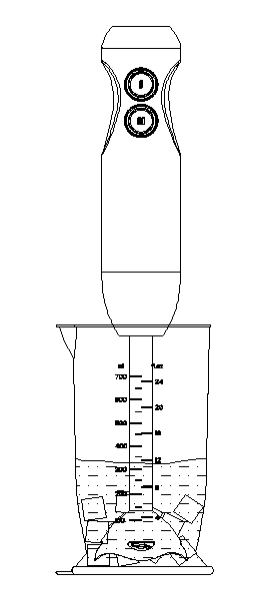

2. Cutting the food into cubic block that no more than 15 mm³, then put them into beaker and add some cold boiled water, or drinking water, milk, water, milk, etc.(place the cup mat under the beaker and add food and water into beaker)

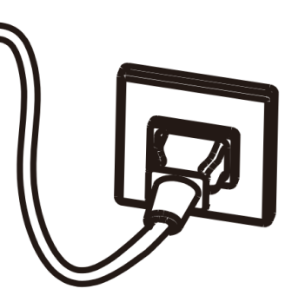

3. plug the power cord into power socket

4. Put the blending blade into beaker

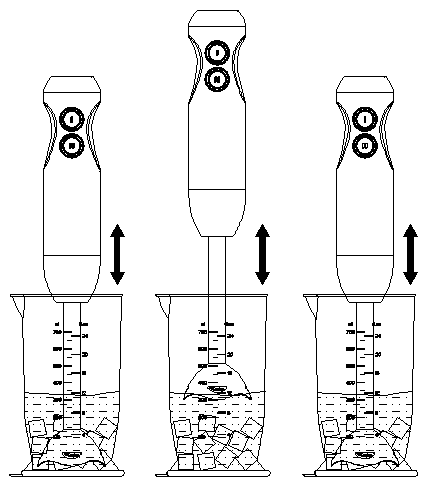

5. The product will continue to work by pressing on high or low speed button. In order to blend the food well and quickly, please use your one hand to hold the beaker, the other hand to hold the main unit to do up and down reciprocating movement. If you want to stop this product, just press on the switch button.

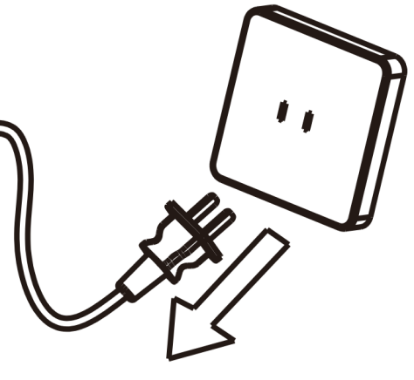

6. Pull the plug out of the power socket after working.

Attention：

1. The accessories continuous working time should less than 20 seconds. After working 30 seconds, they need to rest for 2 minute.
2. Take 20 seconds of work and 2 minutes of rest as a cycle. After 5 consecutive cycles of operation, the motor cooling must rest for 30 minutes
3. In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without immersing into liquids.

• How to use the chopper

This accessory is special suitable for chopping meat, ginger, garlic, and making carrot granule, chili sauce, etc.

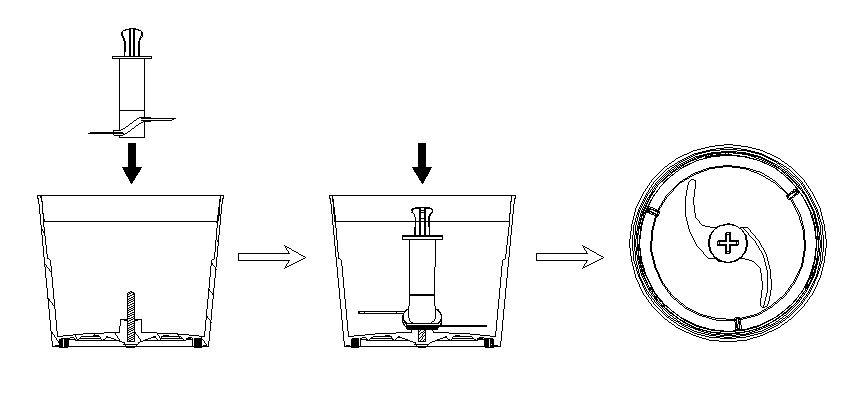

1. Setting the chopping blade into chopper shaft

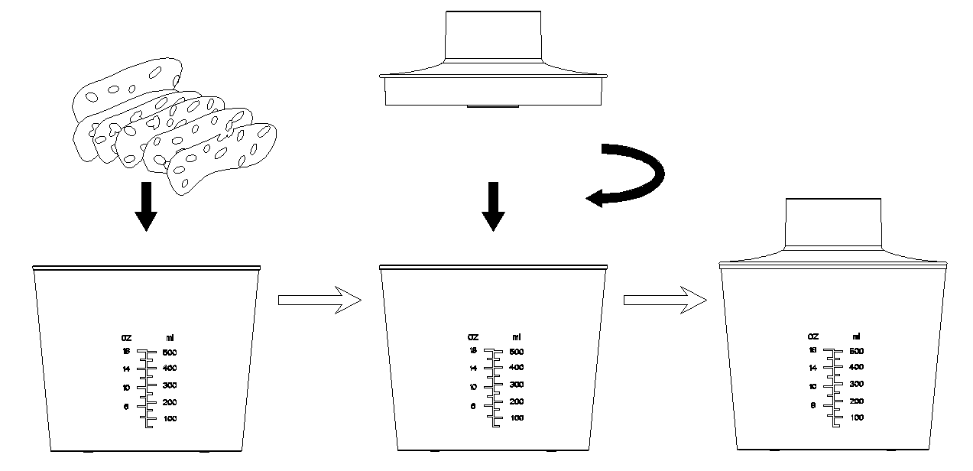

2. Cutting the food material into appropriate shape and size. For example: cut meat into 2cm*2cm* 6cm size; cut onion into 4-6 disc, etc. Put the ready food into chopper and lock the chopper lid.

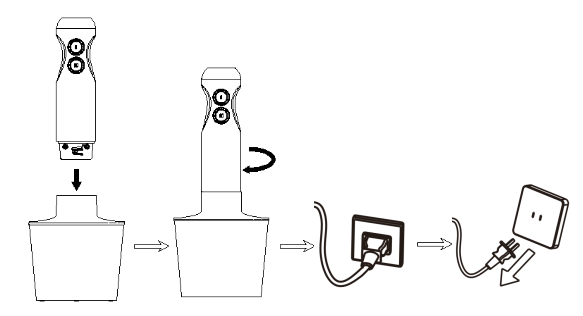

3. Let the main unit turn-lock clasp to the chopper lid, and then plug in and press the switch button. Once the food material chopped to your expected effect, just hand off the switch button, and the product will stop working. Finally, you should unplug the power cord firstly and then pour out the processed food.

Attention:

1. Maximum capacity can't more than 500 grams per time when meat chopping
2. The continuous working time should less than 15 seconds when meat chopping. After working one time, they need to rest for 2 minutes.
3. Regarding 15 seconds at work and 2 minute at rest as a cycle. And after continuously working 3 cycles, it must rest 30 minutes for motor cooling.

Some operation tips:

1. High speed button should be used when meat chopping, especially the turbo function, as it only takes about 15 second and the meat foam taste better. Overtime processing will destroy the meat fibers and not taste good.
2. The best food material to process meat: Lean beef without tendon, lean pork without pigskin and bone. The proportion of fat meat should not exceed one fifth of the whole piece of chopping meat, otherwise it will affect the chopping effect.

• How to use the egg white beating components

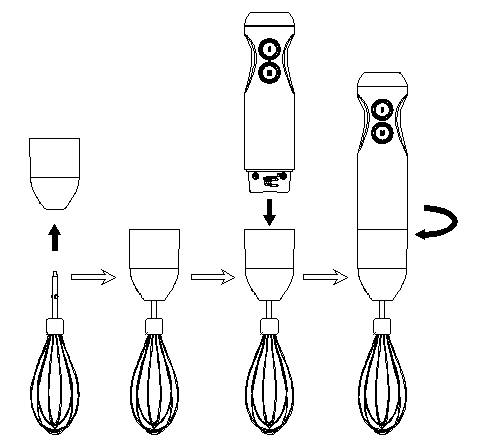

1. Inserting the whisk into egg white beating components, and then lock it to the main unit.

2. Adding egg whites of 2-3 eggs into beaker, and then put the whisk into it. Plug in and use high speed button to work. Once the egg white formed foam, hand off the switch button and the product will stop working. Finally, unplug the power cord.The accessories continuous working time should less than 1 minute.

Warm prompt:

The optimum efficiency after mixing: Put the cup upside down, and there is no egg white liquid flow out.

CLEANING AND MAINTENANCE

1) You should unplug the power cord plug before cleaning.

2) Do not touch the sharp blade.

3) Please use dry dishcloth to wipe the product body. And it is strictly prohibited to let the main unit rinse with water or immerse to the water.

4) Please do not use metal brush, nylon brush, household cleanser, diluent and other similar cleaning supplies to clean this product, as they may damage the product surface structure.

5) Please use soft dry cloth to wipe the dirt on the power cord.

6) The cleaning requirements of each functional accessories.

Cleaning Accessories	scrubbing	Rinsing	Immersion cleaning	Dishwasher	Remark
Blending rod	√	√	×	√	Do not immerse into water
Whisk head	√	×	×	×	Do not immerse into water
Whisk	√	√	√	√
Chopper lid	√	×	×	×	Do not immerse into water
Chopper	√	√	√	√
Chopping blade	×	√	√	√
Beaker and lid	√	√	√	√

CAUTION

1. Before using check that the voltage indicated on the product corresponds with the voltage of your electrical outlet.
2. Do not operate any appliance with a damaged cord or plug or after the appliance malfunction or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
3. Do not leave the machine on unattended.
4. Do not let children and person with learning difficulties to use this product.
5. Ensure that the plug has been pulled out from grounding-type receptacle before cleaning.
6. Avoid contacting the moving parts.
7. In a separate operation, please do not let high-speed beaters or hooks are to others as this would cause injury.
8. Do not let cord hang over edge of table or hot surface.
9. Do not immerse motor unit of mixer into water or other liquids as this would give rise to electric shock.
10. Do not use for commercial purposes.
11. Do not use outdoors.
12. This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
13. Cleaning and user maintenance shall not be made by children without supervision unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
14. If the supply cod is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
15. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
16. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
17. Appliances can be used by persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
18. Children shall not play with the appliance.
19. Switch off the appliance and disconnect from the supply before changing accessories or approaching parts, which move in use.
20. This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;

– farm houses;

– by clients in hotels, motels and other residential type environments;

– bed and breakfast type environments.

21. Pay attention to potential injury from misuse.
22. Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.
23. Do not allow children to use the blender without supervision.
24. Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming.

TROUBLESHOOTING
